Evidence

the photos and video the book is built from

Raw material the book is built from, with the IDs the book uses. Photos open full size. Video is one clip so far; the contact sheet and key frames are what the timing baseline was read from.

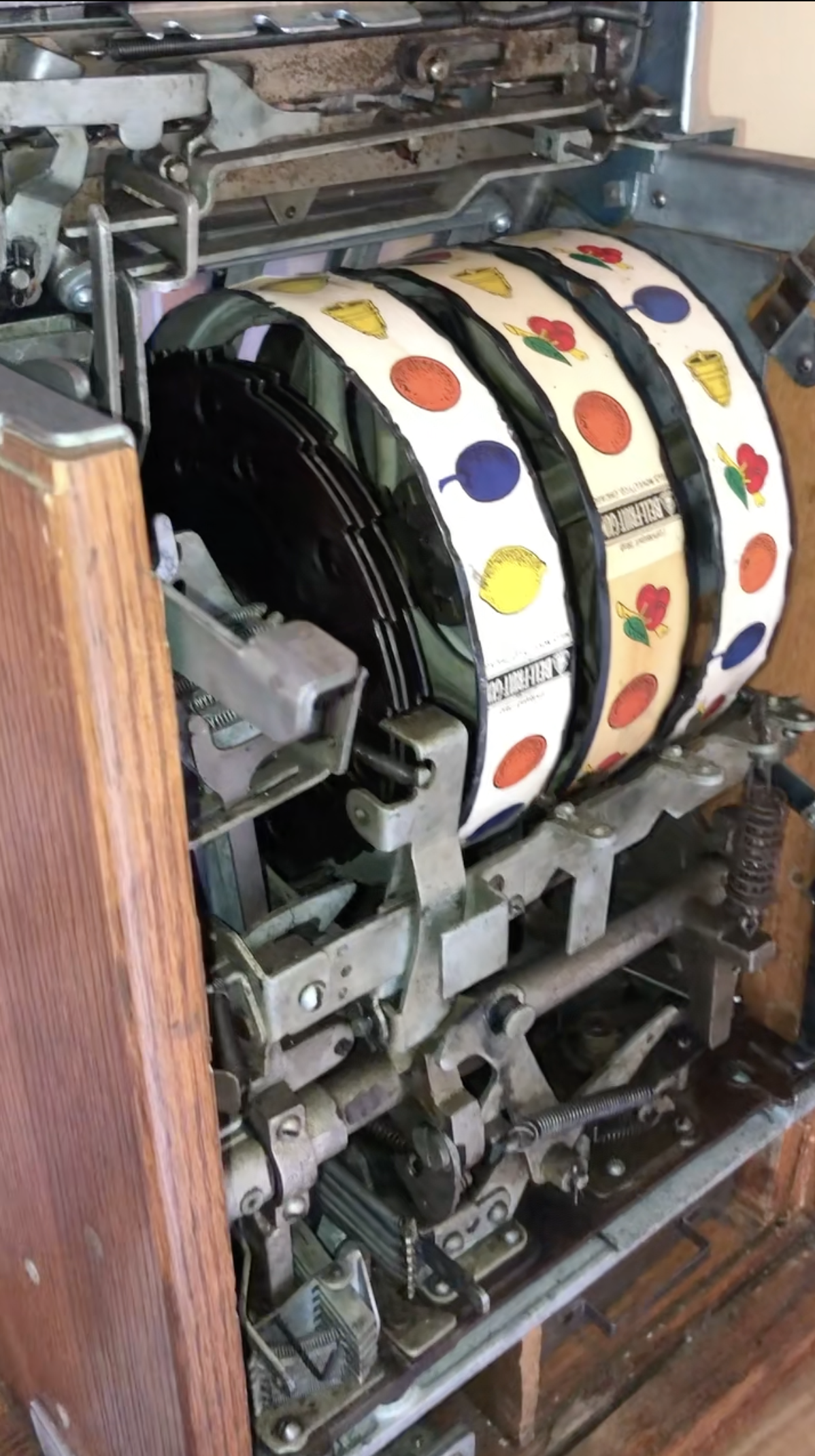

IMG-01 Left-front 45°, chassis in cabinet. Reels, disc behind reel 1 edge-on, slide stack, tall spring at right Used in §3.5, §8.2.

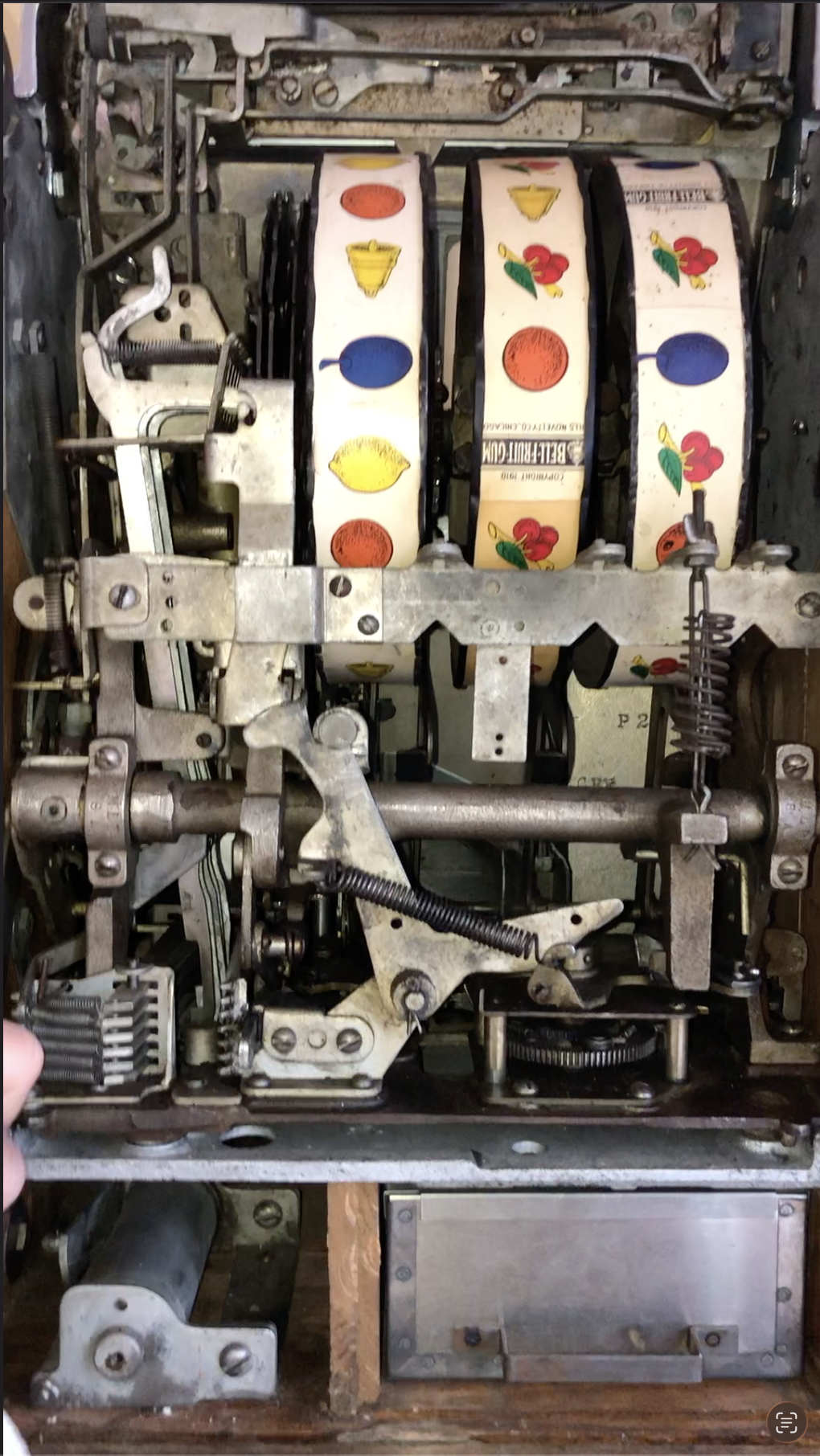

IMG-02 Rear, straight on. Shaft, fork, fork spring, clock, slide stack, cash box. Stamps "P 2" / "C B…" Used in §3.3, §3.4, §8.1.

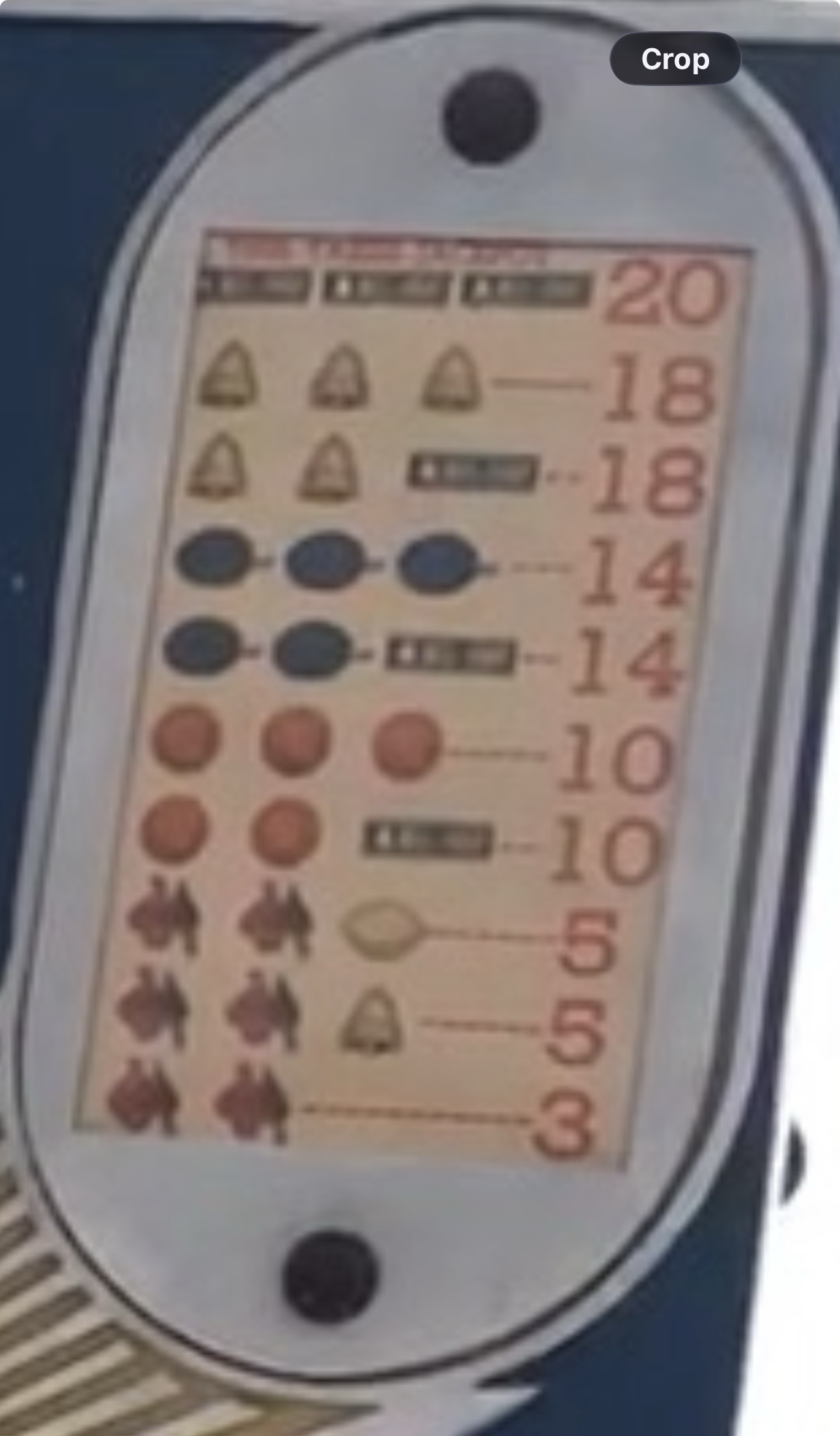

IMG-03 Award card. All pays legible; red header line not Used in §3.6, §8.4.

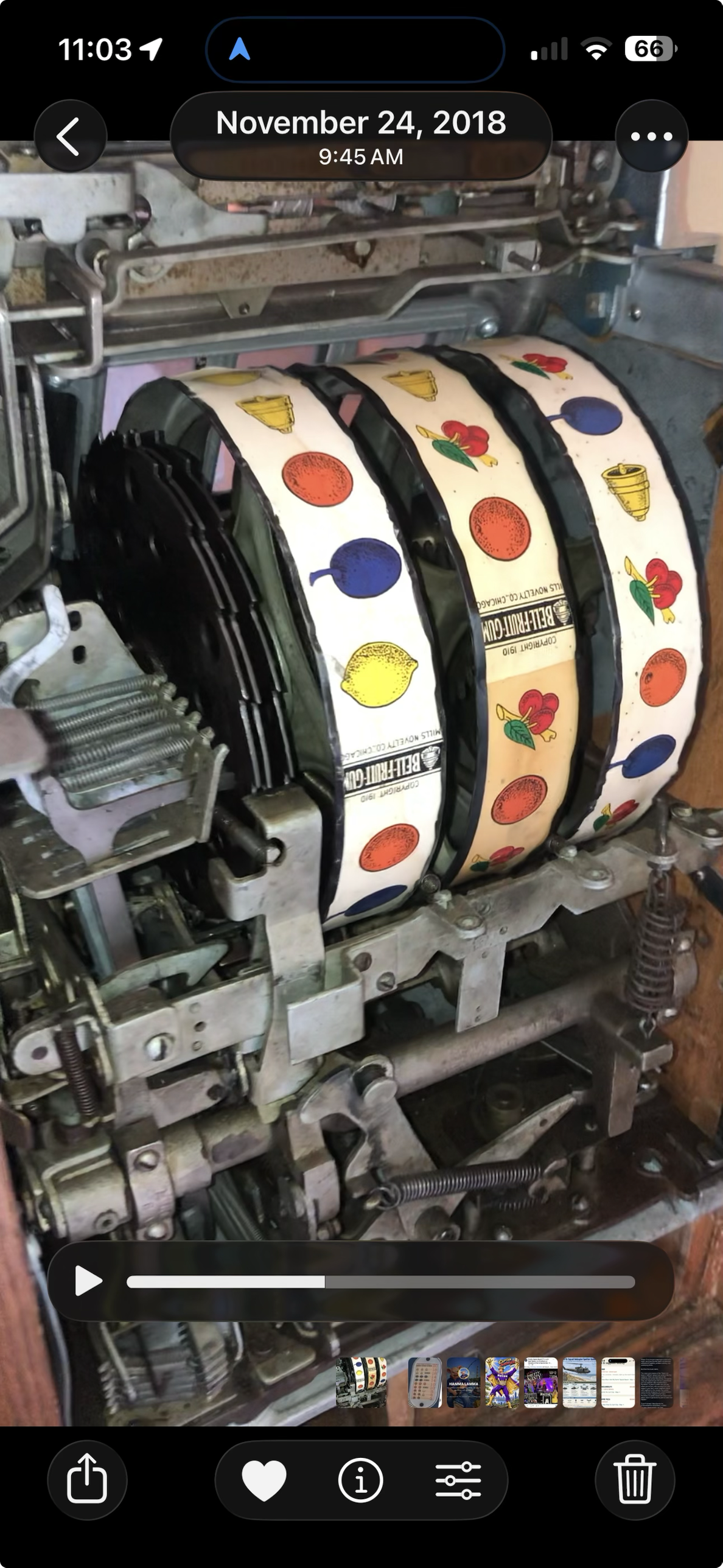

IMG-04 Frame from a 2018-11-24 video, same angle as IMG-01, sharper Used in §3.5.

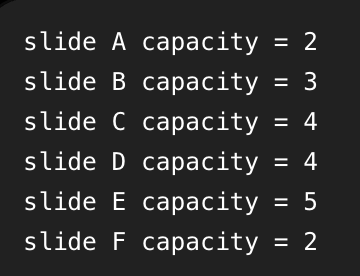

IMG-05 Slide capacities A2 B3 C4 D4 E5 F2 Used in §3.6.

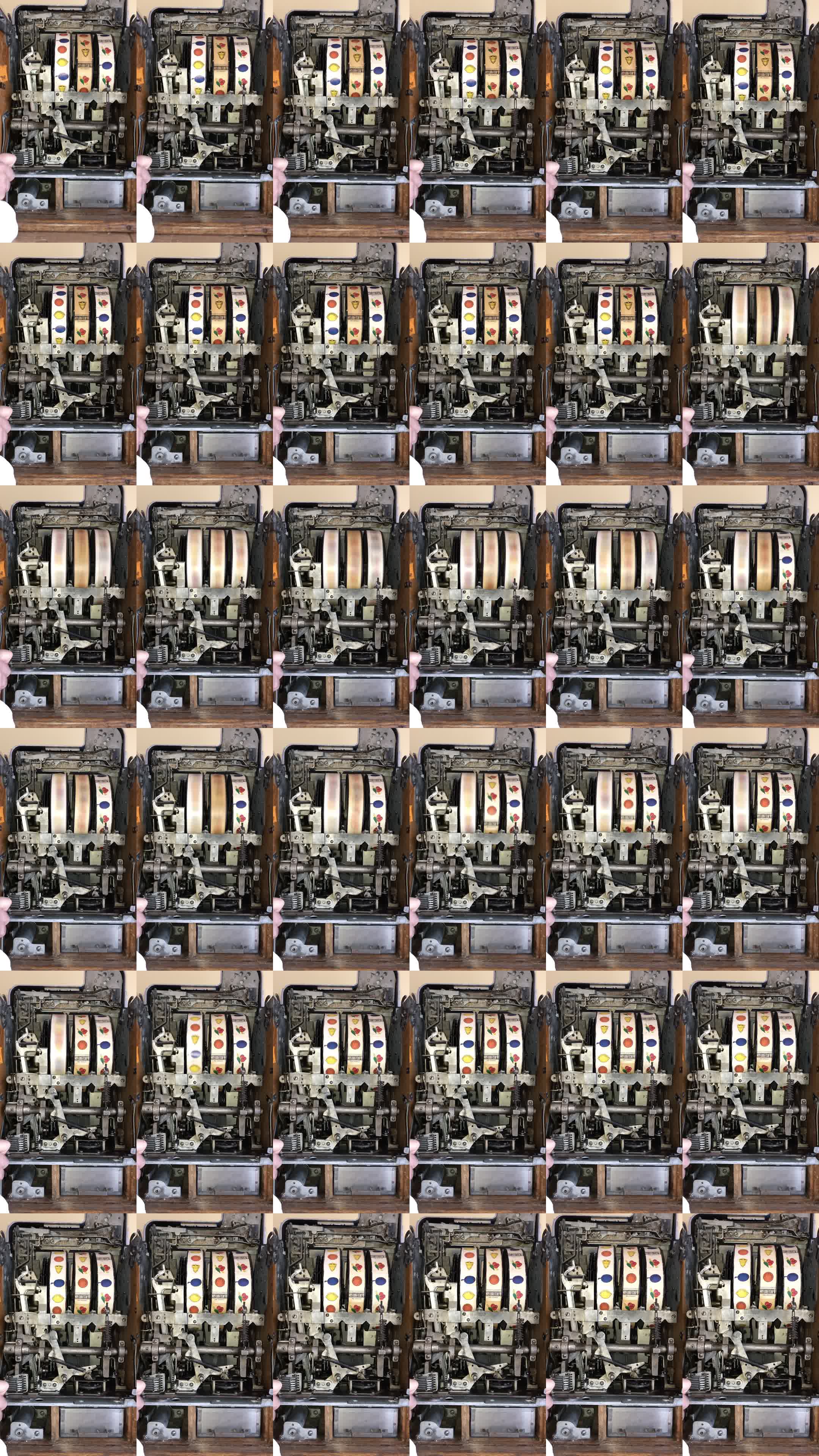

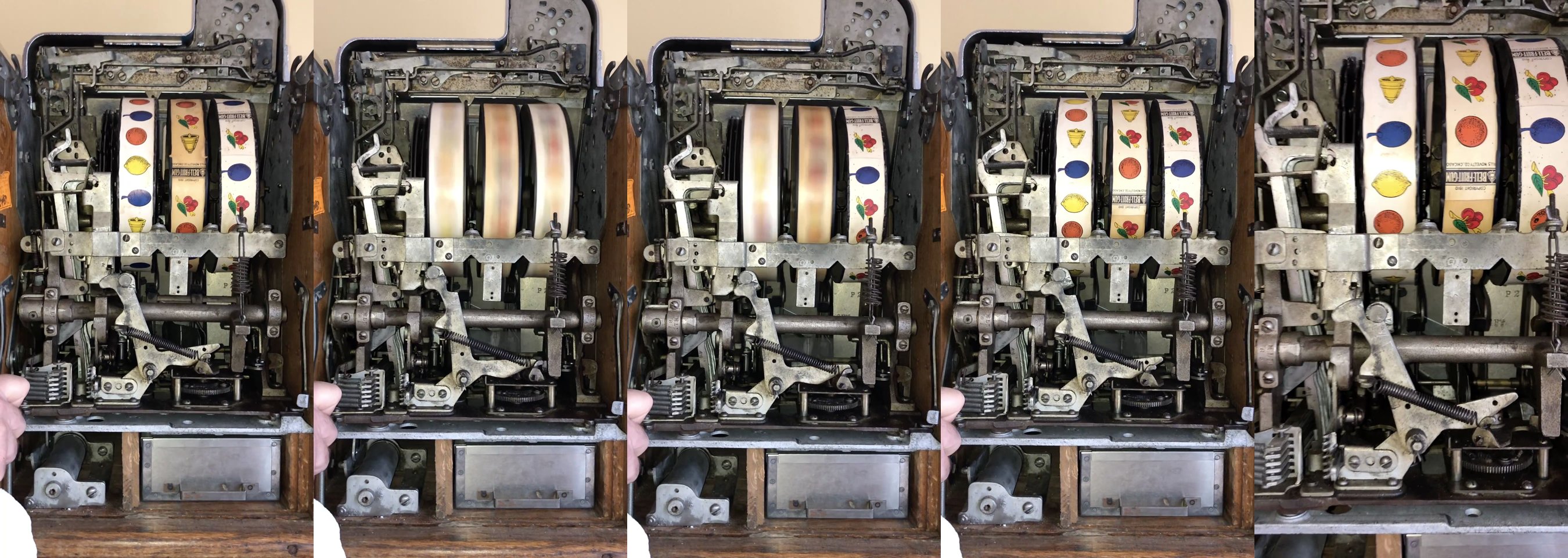

VID-01 — VID-01 One pull, rear view, no win. Timing baseline Used in §1.7. VID-01_pull_rear_30fps.mov

VID-01 — VID-01 One pull, rear view, no win. Timing baseline Used in §1.7. VID-01_pull_rear_30fps.mov
